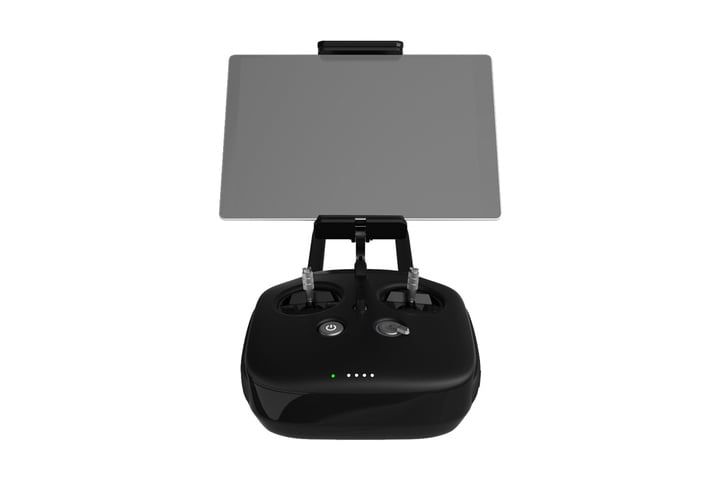

Matrice 600 Series Remote Controller
1900.5555.12
0901.5555.12 | 0901.866.767
The remote controller integrates video downlink and aircraft control into one system. The combined system operates at 2.4 GHz with a maximum signal transmission range of 5 km. The device features a number of standard and customizable buttons that allow users to quickly access certain aircraft functions, such as taking and reviewing photos/videos, as well as controlling the gimbal and landing gear. It is powered by a 2S rechargeable battery.
Operating Frequency:
- 920.6 MHz to 928 MHz (Japan)
- 5.725 GHz to 5.825 GHz
- 2.400 GHz to 2.483 GHz
Max Transmission Distance (unobstructed, free of interference):
- FCC Compliant: 3.1 miles (5 km)
- CE Compliant: 2.1 miles (3.5 km)
EIRP:
- 10 dBm @ 900 M
- 13 dBm @ 5.8 G
- 20 dBm @ 2.4 G
Video Output Port: HDMI, SDI, USB
Dual Users Capability: Master-and-Slave control
Mobile Device Holder: Supports smartphones and tablets
Output Power: 9 W
Operating Temperature: 14° to 104° F (-10° to 40° C)
Storage Temperature: Less than 3 months: -4° to 113° F (-20° to 45° C)
More than 3 months: 72° to 82° F (22° to 28° C)
Charge Temperature: 32° to 104° F (0° to 40° C)
Built-in Battery: 6000 mAh, 2S LiPo
Max Tablet Width: 170 mm
