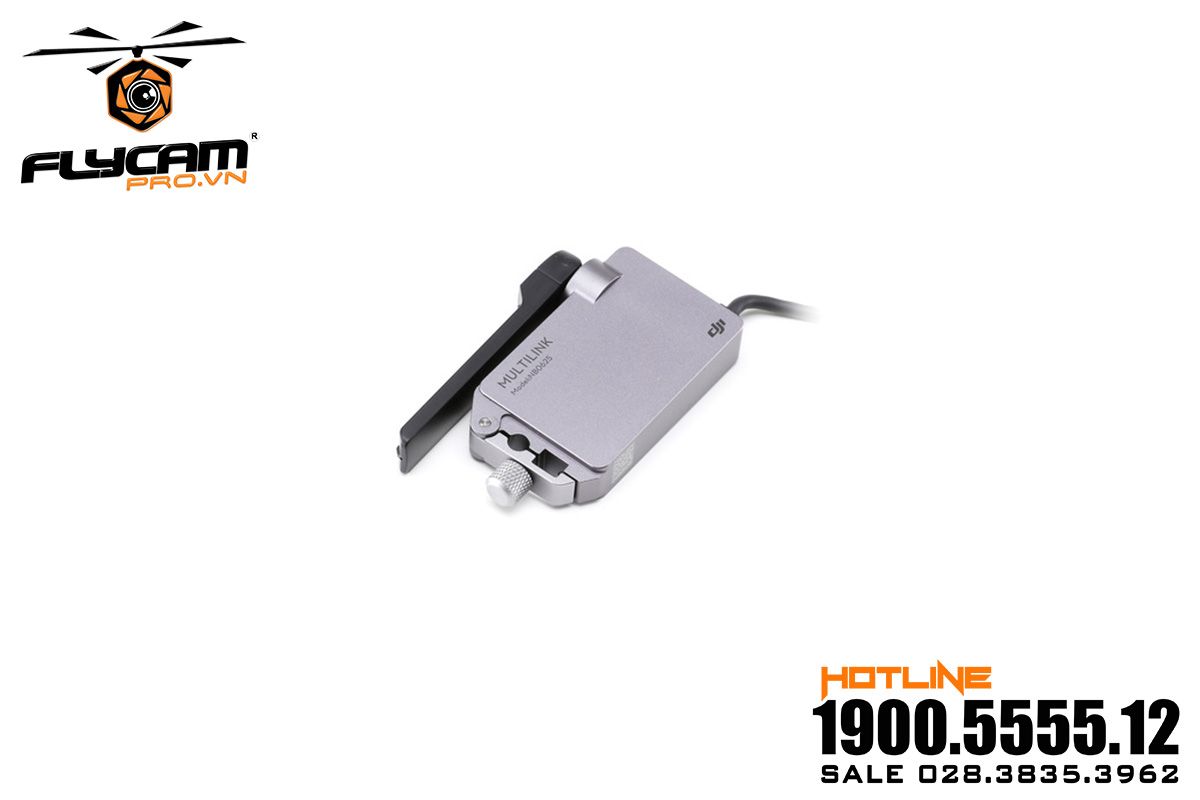

Multilink

Overview
Multilink connects with the Inspire 2 remote controller and Cendence remote controllers to create a master-slave network with three slave controllers. The slave controllers connected to Multilink form a star network with the master controller as the hub. The slave controllers can send commands to the aircraft through the master controller and receive images and video signals from the aircraft directly.

Highlights
Used with the Inspire 2 remote and Cendence remote controllers.
Use with the Cendence remote controller and patch antenna for best results.
Creates a master-slave controller network with three slave controllers for efficient filming and photography.
Master and slave controllers can maintain communication at distances of up to 150m.

Tips
Multilink is not compatible with the DJI Matrice series.

In the Box
Multilink Module × 1

Specifications
Operating Frequency: 2400-2483.5 MHz, 5725-5850 MHz
EIRP: 2.4 GHz: FCC<25 dBm, CE<20 dBm, SRRC<20 dBm; 5.8 GHz: FCC<29 dBm, CE<14 dBm, SRRC<19 dBm
Maximum Communication Distance: 150 m (2.4 GHz), 100 m (5.8 GHz)
Input: 4.2-5.5 V, 1 A Max
Maximum Delay (From Master to Slave 3): 7.5 ms (5.8 GHz) / 11.1 ms (2.4 GHz)
Minimum Delay (From Master to Slave 1): 2.5 ms (5.8 GHz) / 3.7 ms (2.4 GHz)
Operation Environment Temperature: -4 ° to 104 ° F (-20 ℃ to 40 ℃)
Compatible DJI Devices for CAN Port: DJI Focus, Inspire 2 GPS module for the remote controller, Patch Antenna

Compatibility
Inspire 2 Remote Controller
Cendence Remote Controller
